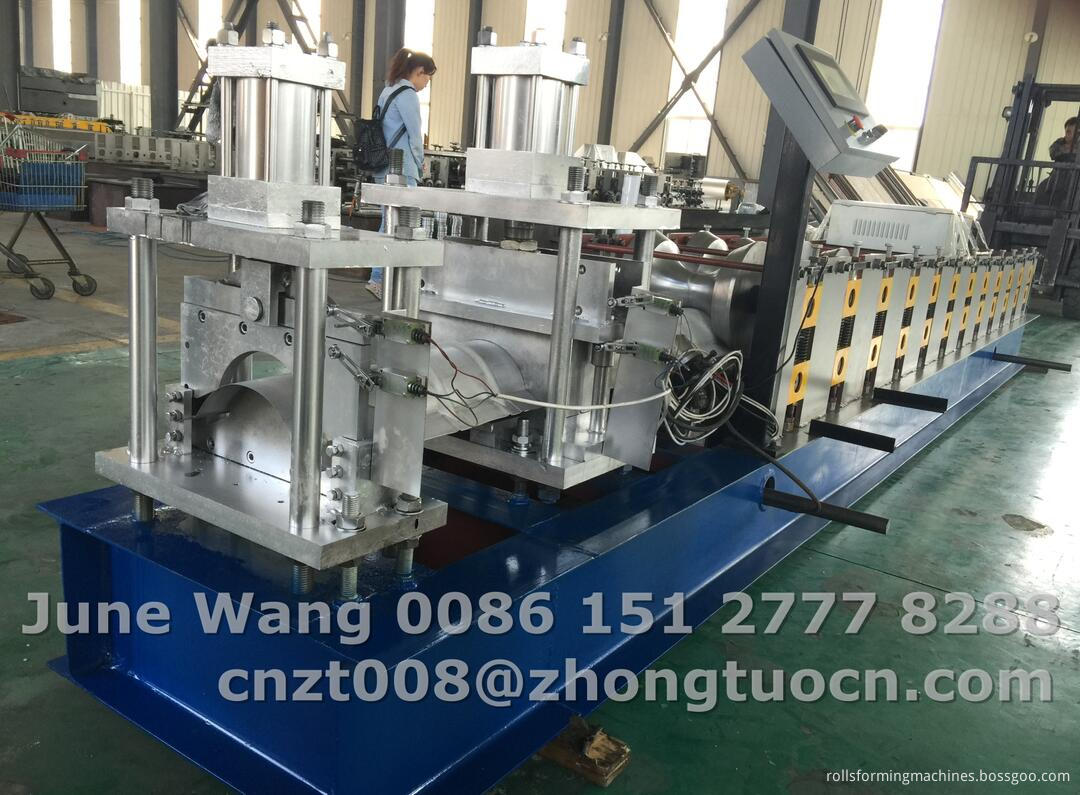

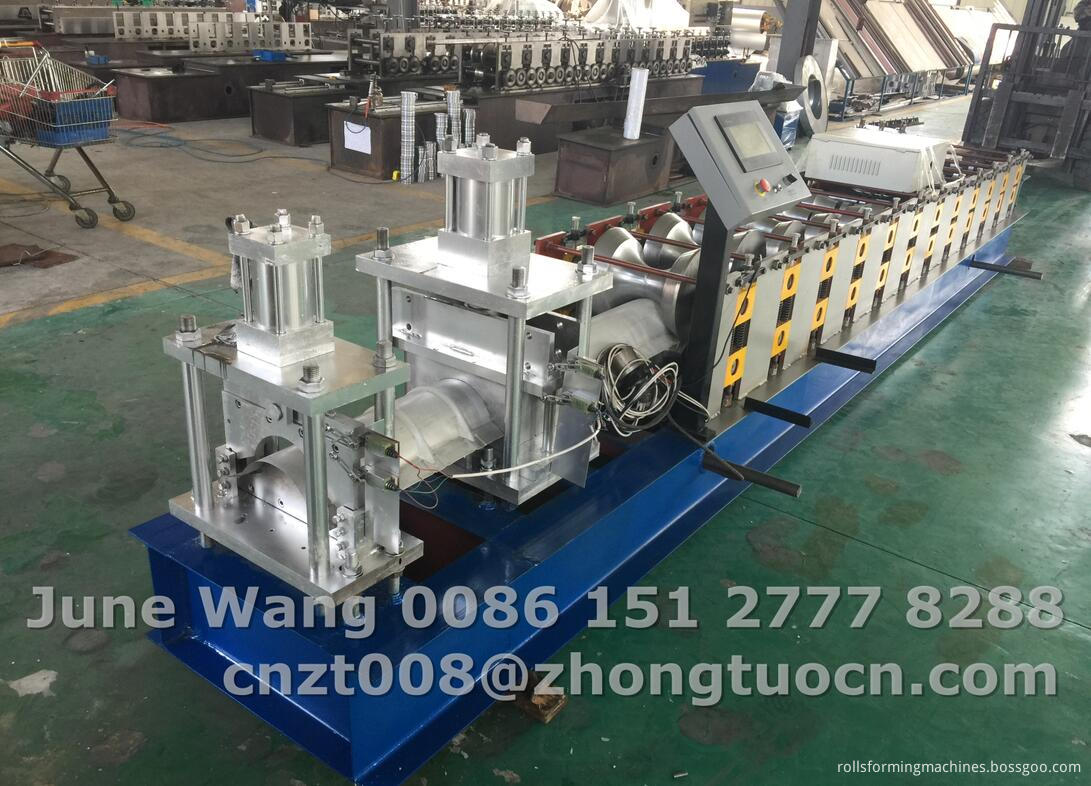

Ridge Cap extrusion Roll Forming Machine from zhongtuo roll forming machine factory
This Ridge Cap Roll Forming Machine is for Panama and it is done according to customer's sample.
The raw material can be color coated steel or the galvanized steel, and the thickness is 0.4-0.8mm.
Ridge cap machine work flow process is same with the glazed tile roof sheet forming machine.

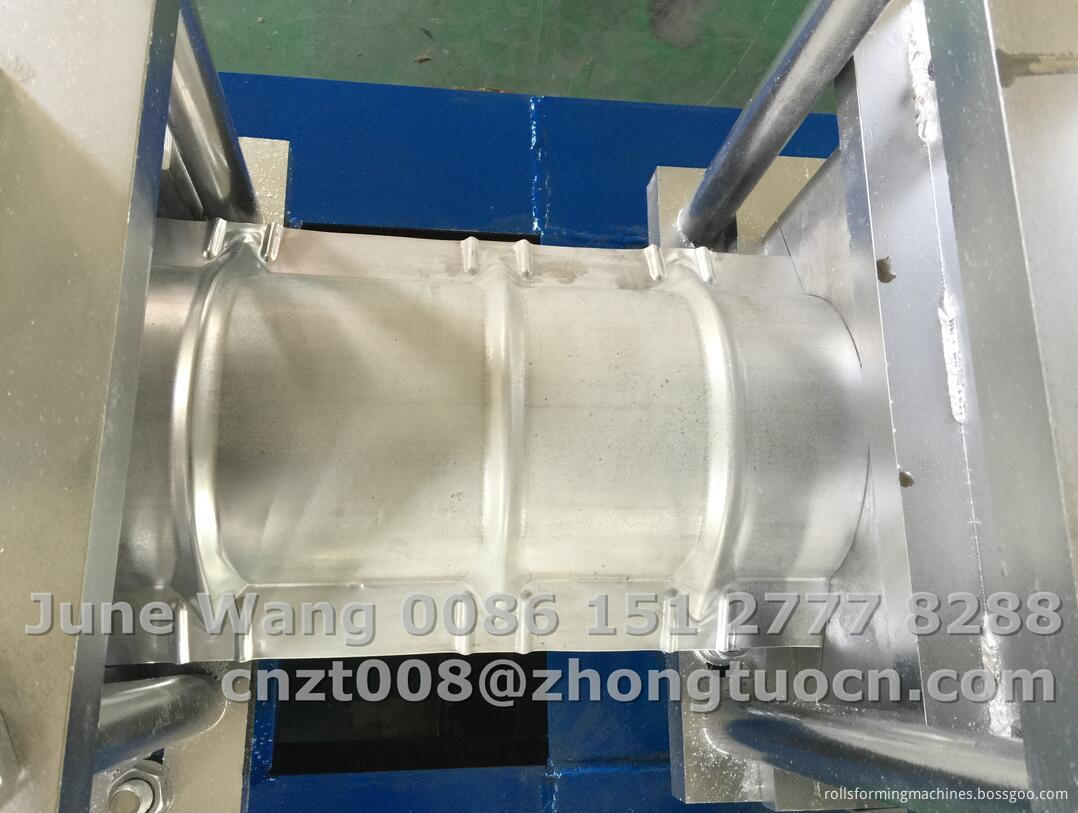

The press step is very important, the rid can make the product more stroner and beauty.
Double Layer Roll Forming Machine
Machine Description
Quantity
Delivery time
Container Type
Price(FOB TIANJIN)
Double Layer Roll Forming Machine
1 SET
45 working days
after receiving deposit
One 40GP
USD14900--24900
Double Layer Roll Forming Machine
are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and
different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.
Double Layer Roll Forming Machine Production Process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→
Products receiving
Parameter
No.
Main Parameters of Double Layer Roll Forming machine
1
Suitable to process
Colored Steel plate, galvanized board, aluminum plate
2
Control system
PLC control
3
Productivity
15-20m/min
4
Width of the raw material
1250mm
5
Thickness of the plate
0.3-0.6mm
6
Rollers
Up layer:13 rows
Down layer:18 rows
7
Diameter of the rollers
70mm
8
Rolling galvanization thickness
0.05mm
9
Material of the cutting blade
Cr12
10
Dimension
9.2m*1.6m*1.4m
11
Weight
About 13.2T
12
Voltage
380V 50Hz 3phases
13
Power
5+4kw
