CLW 50m3 LPG Storage Tank
LPG tank is also called LPG storage tank,LPG tanker, LPG storage tanker propane
tank and propane tanker whinc belongs to special equipment.It is mainly used for liquefied petroleum gas storage and distribution stations, car filling stations, etc. There are many production processes for CLW LPG storage tanks. Several important processes are as follows: The first is the selection of raw materials for large-scale iron and steel enterprises; the second is the overall heat treatment required for the welding of tanks. This process is to eliminate the stress of steel plates and make the entire tank become As a whole, so that the weld seam will not be cracked. Once again, the sand blasting process used by our company uses one or two millimetersof steel grit to spray the surface of the tank to remove rust. This way of rust removal can effectively remove rust and spray paint and can also be used for longer.Finally, our company chooses products of large-scale paint companies, sprays the anti-rust primer twice, then sprays the topcoat twice. The paint can ensure that thestorage tank will not lose paint for a long time, and the maintenance is better.This is how we keep good quality and competitive prices for global valued customers.
Product Advantage
Â
Volume of Tank
50Â CBM
Filling Weight
25000 kg
Tank Weight
10910Â kg
Thickness of Shell (mm)
14Â mm
Thickness of End plate (mm)
16Â mm
Tank Diameter (mm)
2600 mm
External Dimensions (mm) (length x width x height)
9912Â x 2628Â x 3218Â mm
Material of Tank and Main Pressure Parts
Carbon Steel Q345R
Filling Medium
Liquefied Petroleum Gas ( Propane)
Design Pressure
1.77 MPa
Test Pressure
2.22 Mpa
Corrosion Allowance
1 mm
Medium Density
420-590 kg/ cbm
Main parts of LPG Tank
Item
Specification/ mm
Quantity
Discharge Pipe
DN50-2"
1
Inflow Pipe
DN50-2"
1
Outlet
DN50-2"
1
Gas phase balance pipes
DN50-2"
1
Manhole
DN450
1
Drain Hole
DN50-2"
1

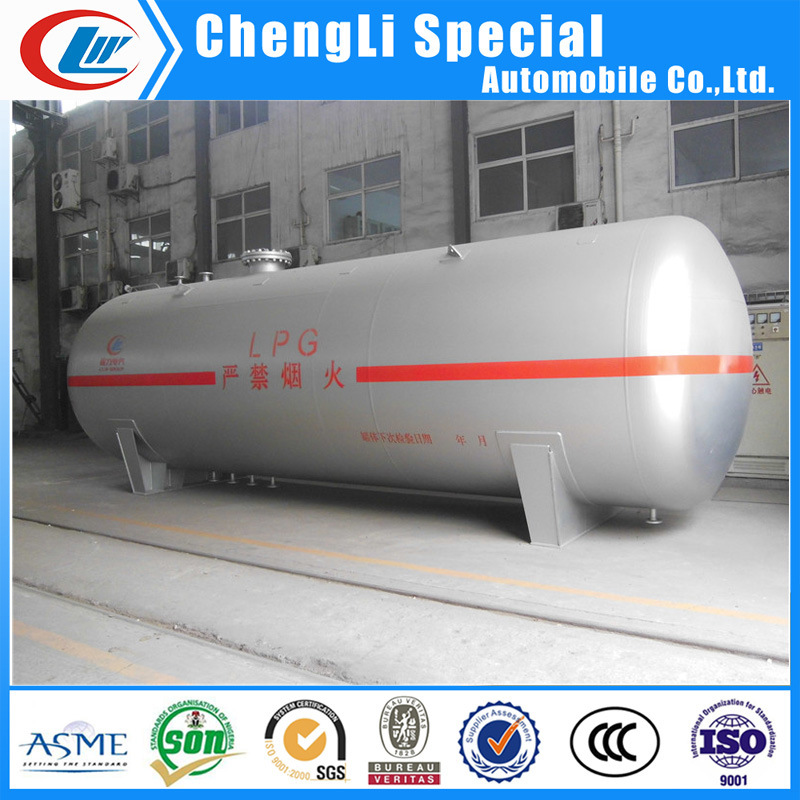

Product Image
Our Company
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system,high efficient delivery.
5. Many trucks are exported in different countires. We have professional sales team.
Our main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel
Our Service
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
Â
Product Description
CLW 50m3 LPG Storage Tank
LPG tank is also called LPG storage tank,LPG tanker, LPG storage tanker propane
tank and propane tanker whinc belongs to special equipment.It is mainly used for liquefied petroleum gas storage and distribution stations, car filling stations, etc. There are many production processes for CLW LPG storage tanks. Several important processes are as follows: The first is the selection of raw materials for large-scale iron and steel enterprises; the second is the overall heat treatment required for the welding of tanks. This process is to eliminate the stress of steel plates and make the entire tank become As a whole, so that the weld seam will not be cracked. Once again, the sand blasting process used by our company uses one or two millimetersof steel grit to spray the surface of the tank to remove rust. This way of rust removal can effectively remove rust and spray paint and can also be used for longer.Finally, our company chooses products of large-scale paint companies, sprays the anti-rust primer twice, then sprays the topcoat twice. The paint can ensure that thestorage tank will not lose paint for a long time, and the maintenance is better.This is how we keep good quality and competitive prices for global valued customers.
Product Advantage
Â
Volume of Tank
50Â CBM
Filling Weight
25000 kg
Tank Weight
10910Â kg
Thickness of Shell (mm)
14Â mm
Thickness of End plate (mm)
16Â mm
Tank Diameter (mm)
2600 mm
External Dimensions (mm) (length x width x height)
9912Â x 2628Â x 3218Â mm
Material of Tank and Main Pressure Parts
Carbon Steel Q345R
Filling Medium
Liquefied Petroleum Gas ( Propane)
Design Pressure
1.77 MPa
Test Pressure
2.22 Mpa
Corrosion Allowance
1 mm
Medium Density
420-590 kg/ cbm
Main parts of LPG Tank
Item
Specification/ mm
Quantity
Discharge Pipe
DN50-2"
1
Inflow Pipe
DN50-2"
1
Outlet
DN50-2"
1
Gas phase balance pipes
DN50-2"
1
Manhole
DN450
1
Drain Hole
DN50-2"
1
Product Image
Our Company
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system,high efficient delivery.
5. Many trucks are exported in different countires. We have professional sales team.
Our main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel
Our Service
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
Â
50cbm/M3/Cubic Meter LPG/Cooking Gas Truck
Model NO.: CLW
Condition: New
Name: LPG Storage Tank
Tank Volume: 50cbm
Shell Thickness: 14mm
End Plate Thickness: 16mm
Tank Diameter: 2600mm
Corrosion Allowance: 1mm
Medium Density: 420-590kg/M3
Design Pressure: 1.77MPa
Trademark: CLW
Transport Package: Nude
Specification: 9912 x 2628 x 3218 mm
Origin: Hubei
Model NO.: CLW
Condition: New
Name: LPG Storage Tank
Tank Volume: 50cbm
Shell Thickness: 14mm
End Plate Thickness: 16mm
Tank Diameter: 2600mm
Corrosion Allowance: 1mm
Medium Density: 420-590kg/M3
Design Pressure: 1.77MPa
Trademark: CLW
Transport Package: Nude
Specification: 9912 x 2628 x 3218 mm
Origin: Hubei
Product Description1.ISO, CCC & ASME certificated
2.Four times Layer Painting
3.Submerged arc welding technology to ensure stable welding quality
4.100 Percent X ray radiographic test
5.Good sealing and pressure resistance
6.High quality with competitive price
1.ISO, CCC & ASME certificated
2.Four times Layer Painting
3.Submerged arc welding technology to ensure stable welding quality
4.100 Percent X ray radiographic test
5.Good sealing and pressure resistance
6.High quality with competitive price
